S-8R
Surecom S-8R Quad Band 5W Handheld Walkie Talkie FM Transceiver

Main features:
Quad frequency
Fashion color screen
High low Output power
Easy operation
English interface

General
Frequency Range
VHF: 136-174MHz, 220-260MHz
UHF: 400-480MHz, 350-390MHz
Channel Capacity
 200 Channels
Frequency Stability
±2.5ppm
Channel Step
2.5/5/6.2/10/12.5/25KHz
Working Voltage
7.4V DC±15%
Squelch way
CARRIER / CTCSS / DCS / 5Tone / 2Tone / DTMF
Antenna impedance
50ohm
Operating Temperature
-20~+60℃
Dimension(W*H*D)
128*62*35mm
Weight
230g

Receiver

Wide Band
Narrow band
Sensitivity
≤0.25μν
≤0.35μν
Channel chioce
≥70dB
≥60dB
Intermodulation
≥65dB
≥60dB
Spurious Rejection
≥70dB
≥70dB
Audio response
+1~~3dB（0.3~3KHz）
+1~~3dB（0.3~2.55KHz）
Signal to noise ratio
≥45dB
≥40dB
Audio distortion
≤5%
Audio output power
≥1W@10%

Transmitter

Wide Band
Narrow band
Output power
<5W
Modulation Mode
16KΦF3E
11KΦF3E
Channel Power
≥70dB
≥60dB
Signal noise ratio
≥40dB
≥36dB
Parasitic harmonic
≥60dB
≥60dB
Audio response
+1~~3dB（0.3~3KHz）
+1~~3dB（0.3~2.55KHz）
Audio distortion
≤5%

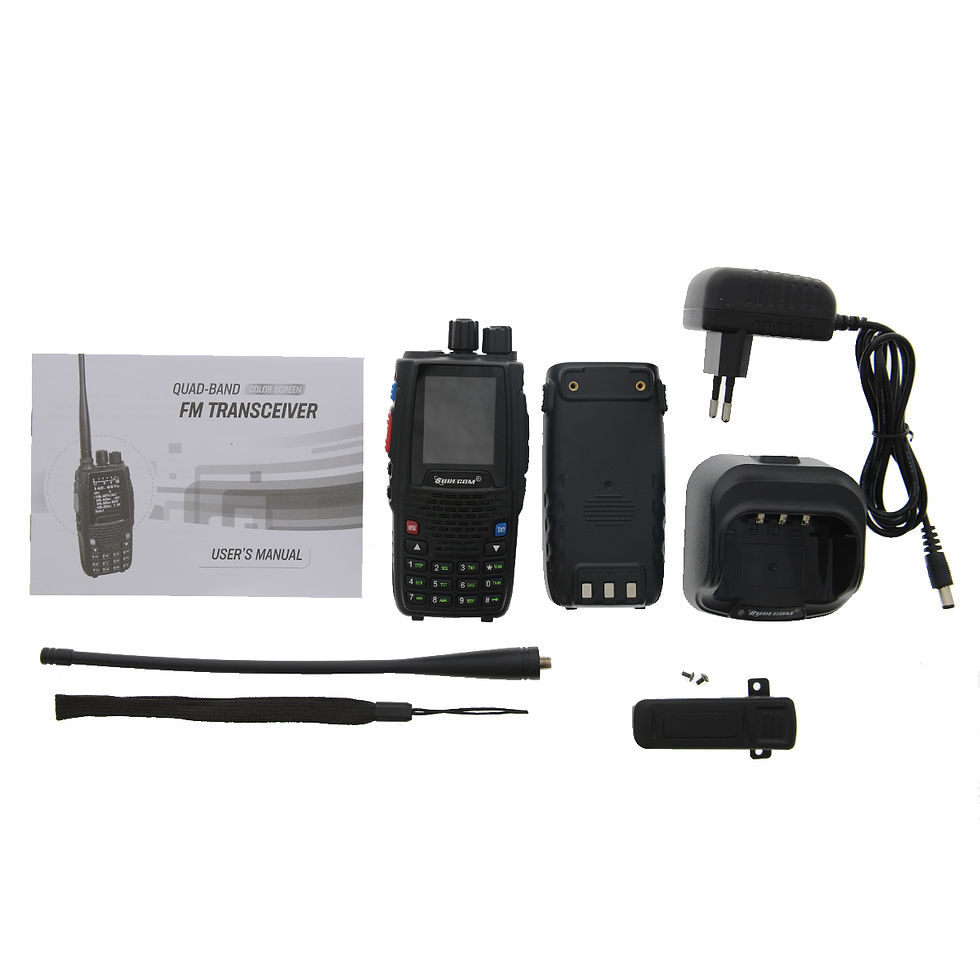

Package Include:
1 x Surecom S-8R Quad Band 5W Handheld Walkie Talkie FM Transceiver
1 x 2000mAh Lithium Battery
1 x Antenna
1 x Belt Clip
1 x Belt
2 x User Manual
1 x Desktop Charger
1 x AC Adapter
